JL Audio VX700/5i

5 Ch. Class D System Amplifier with Integrated DSP, 700 W

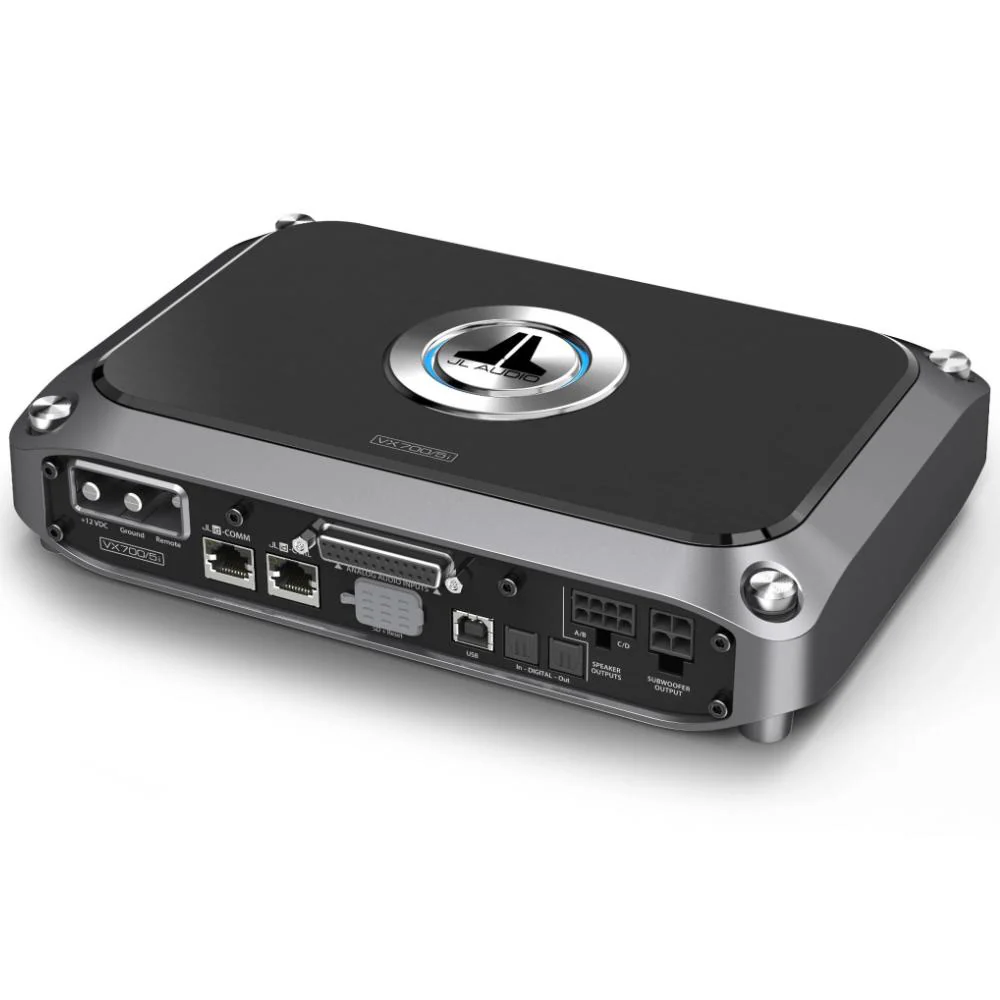

VX700/5i

5-Channel Class D System Amplifier with Integrated DSP, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

TüN™ Software Applications

Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.

Unprecedented, Onboard DSP Tuning Power

• Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
• Hi-Res audio processing at 24 bit/96 kHz
• High-performance AKM® A/D and D/A converters
• 10 Bands of fully parametric EQ, per output channel, including pre-outs
• Shelving EQ option for Band 1 and Band 10
• High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
• Linkwitz-Riley: 12, 24, 48 dB/octave
• Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
• Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
• All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
• Polarity Reversal (0 or 180 deg.)
• Output Level Trim in 0.1 dB steps

NexD2™ Switching Amplifier Technology

• Our latest generation of high-speed switching technology delivers superb full-range power, fidelity and efficiency.
• DSP acts as central clock for all channels to improve audio quality and reduce noise.

Ultra-Versatile Analog and Digital Inputs

High-performance, differential-balanced analog inputs for outstanding noise rejection

Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems

Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.

Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)

Automatic turn-on options via Signal-Sensing or DC-Offset sensing

Functional Compact Chassis Design

• Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
• All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
• Configurable LED logo ring displays status and can display audio preset color code or user-defined color
• Logo badge can be oriented in 90 degree increments
• Corner caps engineered to conceal mounting holes and hardware

JLid™ System Command and Control with Networking Capabilities

JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including:

• DRC-100/DRC-200/DRC-205 (coming soon) Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
• VXi-BTC Bluetooth® Communicator (coming soon): Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
• VXi-HUB Optical Network Hub (coming soon): Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.
